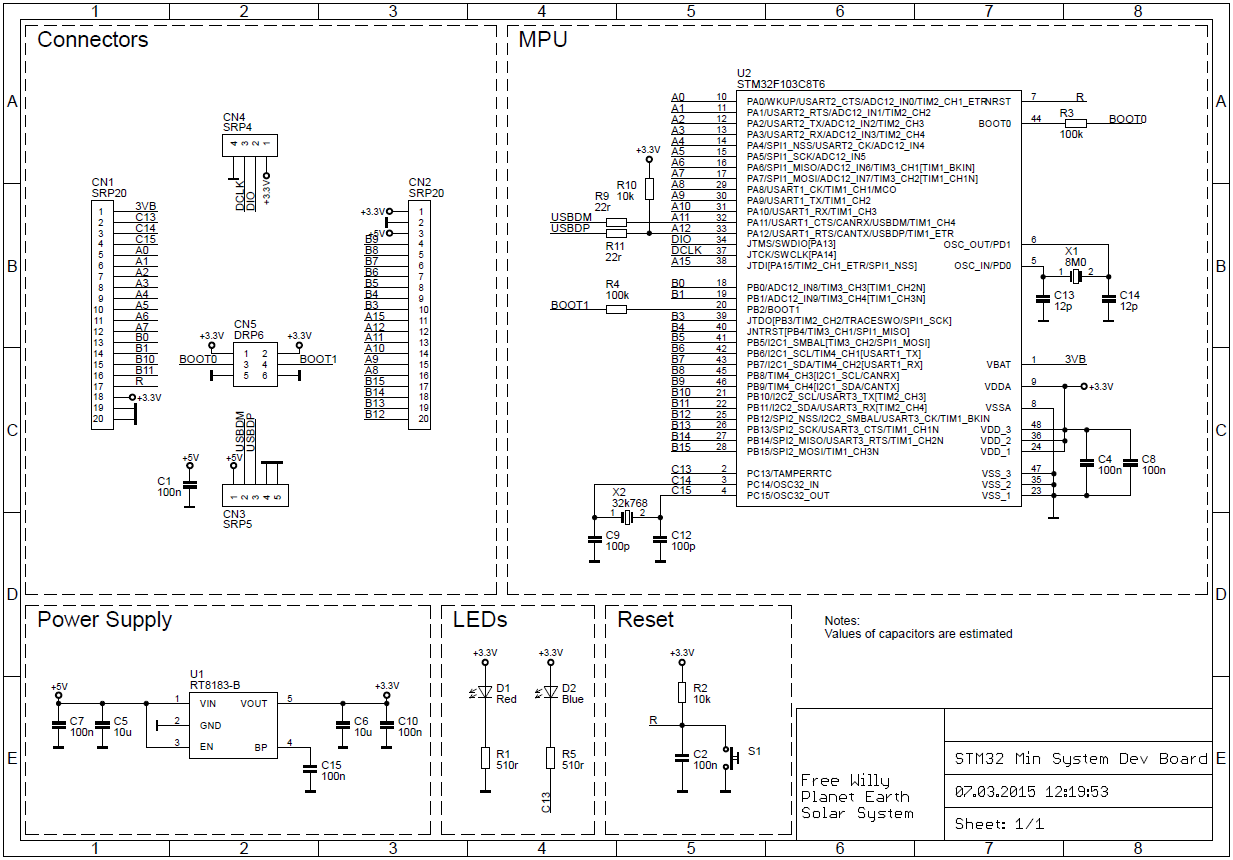

Schematic: the STM32F103C8T6 ARM STM32 Minimum System Development Board

Here is a schematic for a typical "blue pill" board.

You may want to compare this to this schematic with annotations in Chinese:
