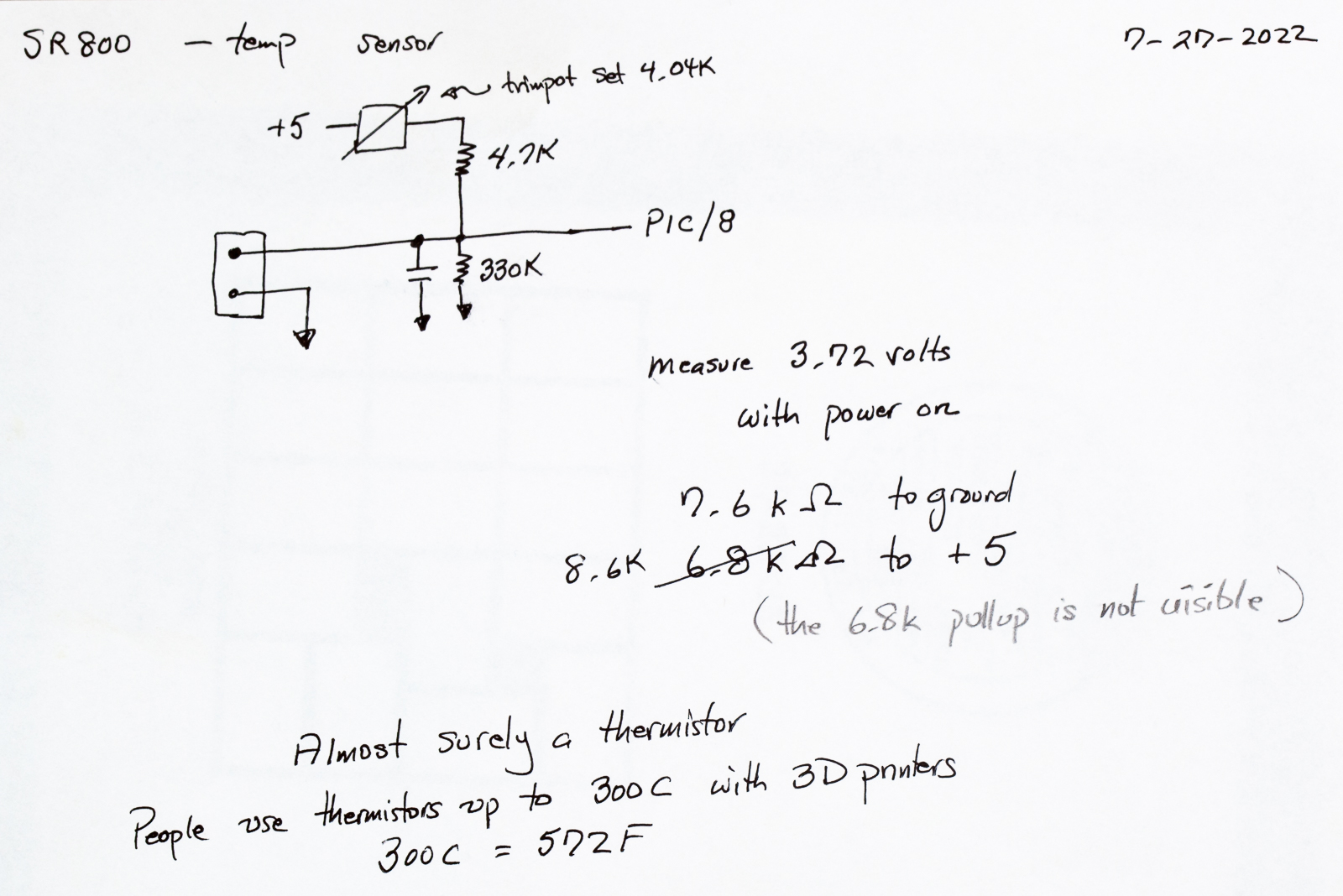

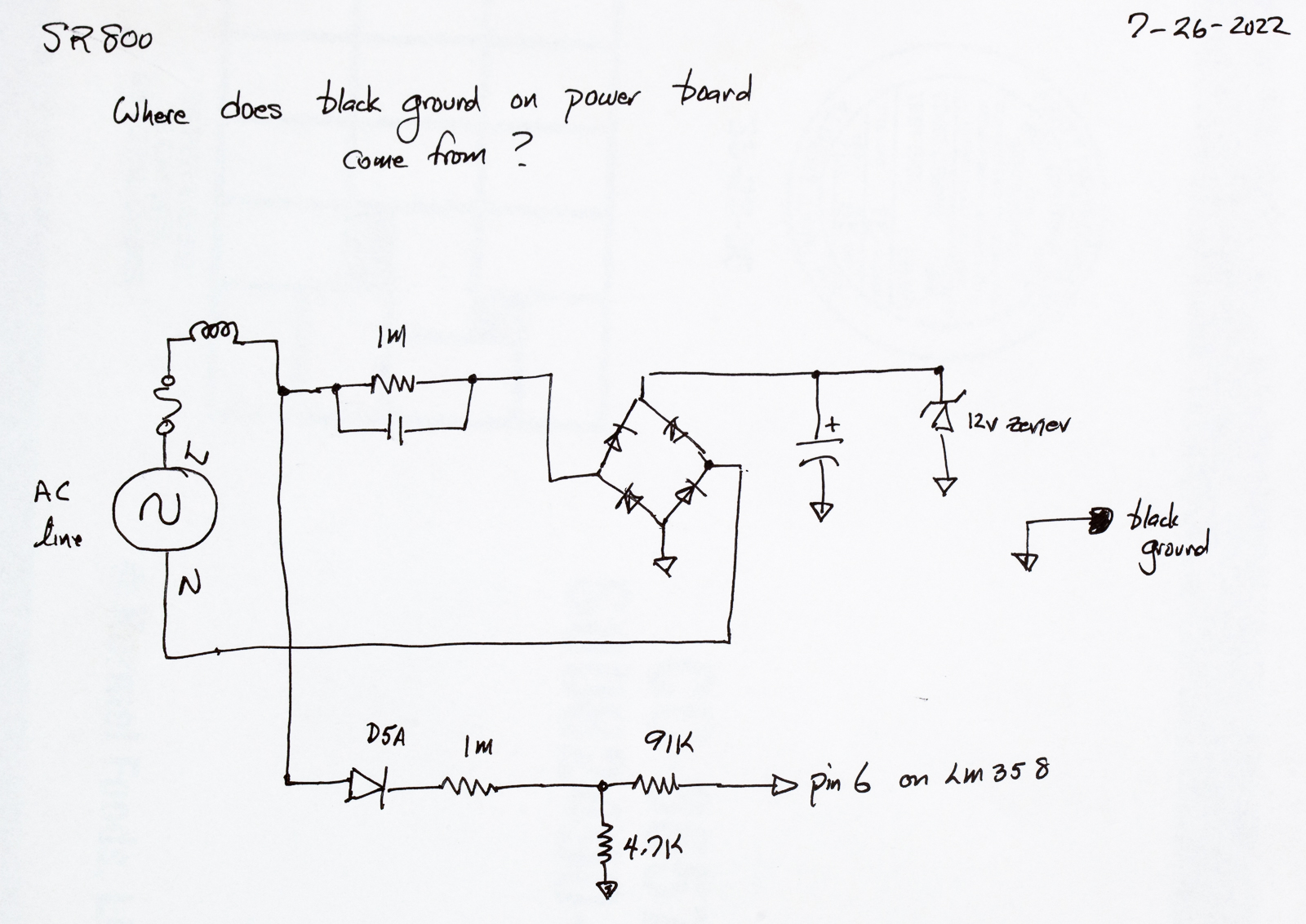

Next here is the 12 volt "raw" power supply circuit (on the power board) along with the signal delivered to the zero crossing detection circuit (the LM368).

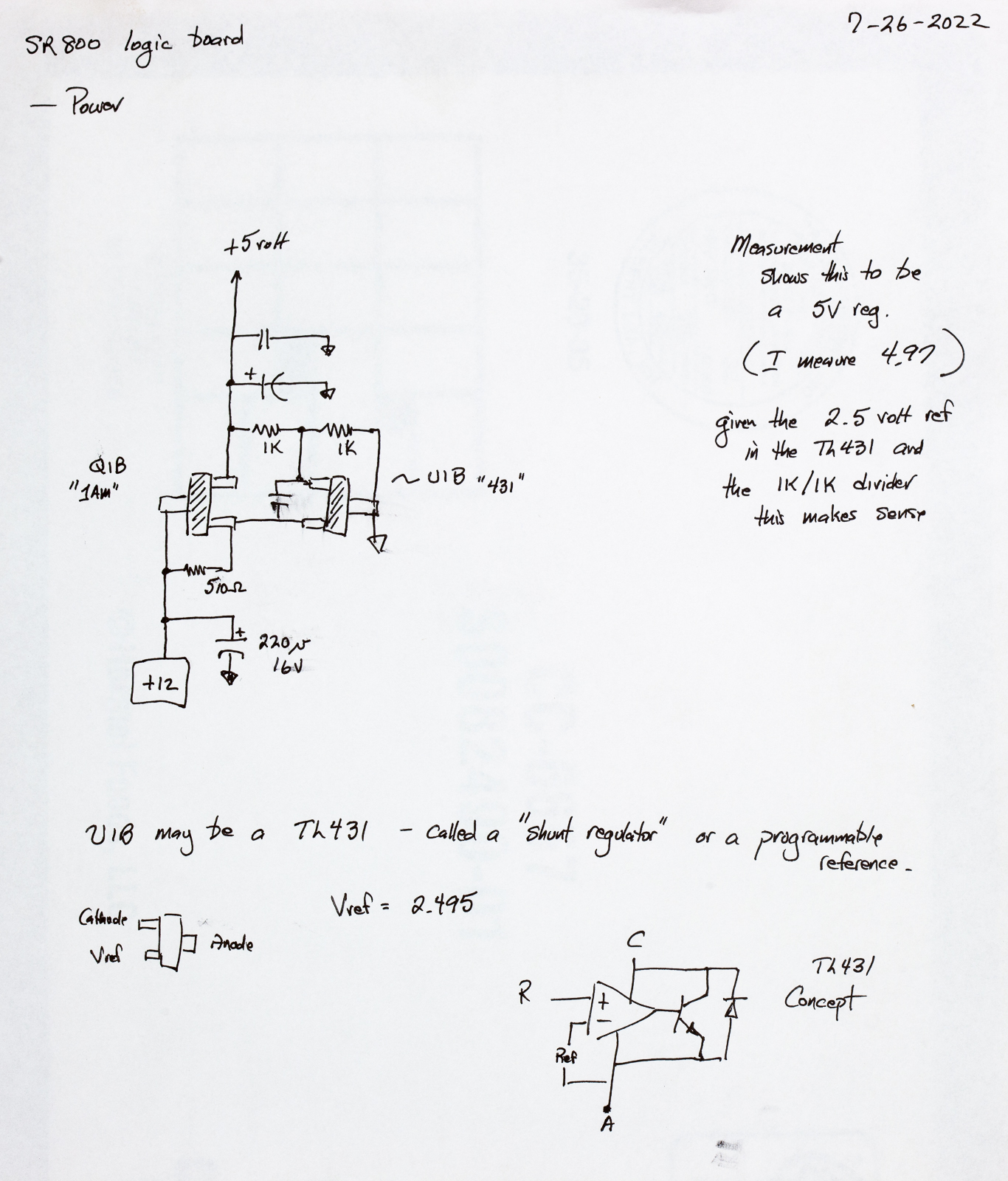

Finally, here is the circuit on the logic board that develops the 3.3 volt supply for the PIC chip from the 12 volts from the power board.
